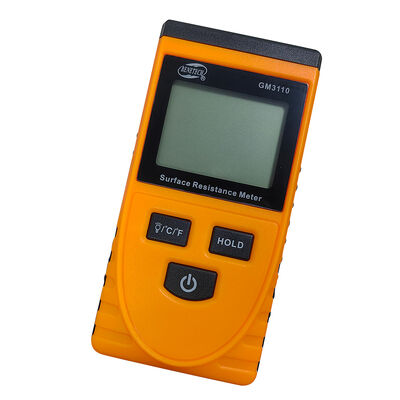

High Accuracy Handheld ESD Surface Resistance Meter

High Accuracy Handheld ESD Surface Resistance Meter

  • High Accuracy Handheld ESD Surface Resistance Meter
  • High Accuracy Handheld ESD Surface Resistance Meter
  • High Accuracy Handheld ESD Surface Resistance Meter
  • High Accuracy Handheld ESD Surface Resistance Meter
High Accuracy Handheld ESD Surface Resistance Meter
รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: allesd
หมายเลขรุ่น: GM3110
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: ต่อรองได้
ราคา: ต่อรองได้
รายละเอียดการบรรจุ: 1 ชิ้น/ถุง OPP
เวลาการส่งมอบ: 25-40 วันทำการ
เงื่อนไขการชำระเงิน: ที/ที
สามารถในการผลิต: 10,000 กก. ต่อเดือน
ติดต่อ
รายละเอียดสินค้า
ชื่อสินค้า: เครื่องทดสอบความต้านทานพื้นผิว แหล่งจ่ายไฟ: แบตเตอรี่ 9V 6F22
ช่วงการวัดความต้านทาน: 10e3-10e10 ความผิดพลาดในการวัดความต้านทาน: ± 1 ระดับขนาด
ความแม่นยำในการวัดอุณหภูมิ: ± 2 °C/± 36 °F ช่วงการวัดอุณหภูมิ: 0°C~50c/32~122°F
เวลาตอบสนองในการวัดความต้านทาน: 1ส ขนาด:: 63.6 × 31X125.8มม.
น้ำหนัก: 122G

High Accuracy ESD Antistatic Surface Resistivity Tester Handheld ESD Surface Resistance Meter



Description:



GM3110 Surface Resistance Tester, also known as high-precision portable insulation resistance tester or electrostatic detector, is an instrument designed specifically for measuring material surface resistance and static electricity.



Model SL-030B
Resistance measurement range 10e3-10e10
Resistance measurement error ± one order of magnitude
Resistance measurement response time 1s
Temperature measurement range 10e3-10e12 ohms
Instrument weight 0 ° C~50c/32~122 ° F
Temperature measurement accuracy ± 2 ℃/± 36 ° F
Power supply 9V 6F22 battery
Size 63.6 × 31X125.8mm
Weight 122g





Product Function Introduction



● Surface resistance test of objects

● Three ways to simultaneously display the surface resistance value or material properties of an object

● Environmental temperature measurement

● Temperature unit conversion

● Data retention function

● LCD backlight display

● pairs of ground resistance measurement

● Automatic shutdown function



Operating instructions:

1. Press the few keys to turn on the device, and the LCD will enter the normal measurement screen while displaying the ambient temperature value.
2. Place the two electrodes of the machine tightly against the surface of the tested material, and for about 1second, the LCD will display the surface resistance value and conductivity properties of the tested material, indicating whether it is a conductor, anti-static material, or insulating material.
3. Ground resistance measurement: Insert the grounding wire into
the grounding socket at the front end of the instrument, ground the other end of the grounding wire, and keep the right electrode of the instrument tightly attached to the surface of the measured object. The resistance value displayed on the LCD is the ground resistance value. (At this time, the left measuring electrode should not touch the surface of the object).
4. Data retention: After measuring a data, press the HOLD key to keep the data on the LCD screen, and then press the HOLD key to exit the retention function.
5. Backlight control: When turned on, press the/C/F key to turn on the backlight for easy measurement at night. Press it again to turn off the backlight.
6. Temperature unit conversion: In the power on state, long press/℃/down key to achieve temperature unit conversion.



More picture :



High Accuracy Handheld ESD Surface Resistance Meter 0



Other Products we Supply:



  1. Cleanroom Apparels(Disposable, Launderable).
  2. Cleanroom Documentation(Paper, Pen, Notebook).
  3. Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove).
  4. Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat).
  5. ESD Package Materials(Bags, Tapes etc).
  6. ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers).
  7. Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs).
  8. Cleanroom &ESD Chairs/Stools.
  9. ESD Wrist/Heel Straps/Grounding Cords.
  10. Static Control Ionizing Blower/Gun/Nozzle.
  11. Illuminated Magnifier.
  12. Cleanroom Curtain and etc.



About Us:



Established in 2011, Suzhou Quanjuda Purification Technology Co., LTD is a leading manufacturer and exporter of various ESD & Cleanroom products, offers a full line of ESD & Cleanroom equipment and supplies, providing comprehensive services by manufacturing, sourcing and exporting products from China.
